Auxiliary switch wiring termination points

hotlizrd

Aug 22, 2025

Today at 12:24 am

I just purchased a new '24 Badlands Sasquatch with 6 aux. switches. Does anyone know where to find a location schematic of the wire termination points?
Thanks in advance!

Sort by date

Reaction Score

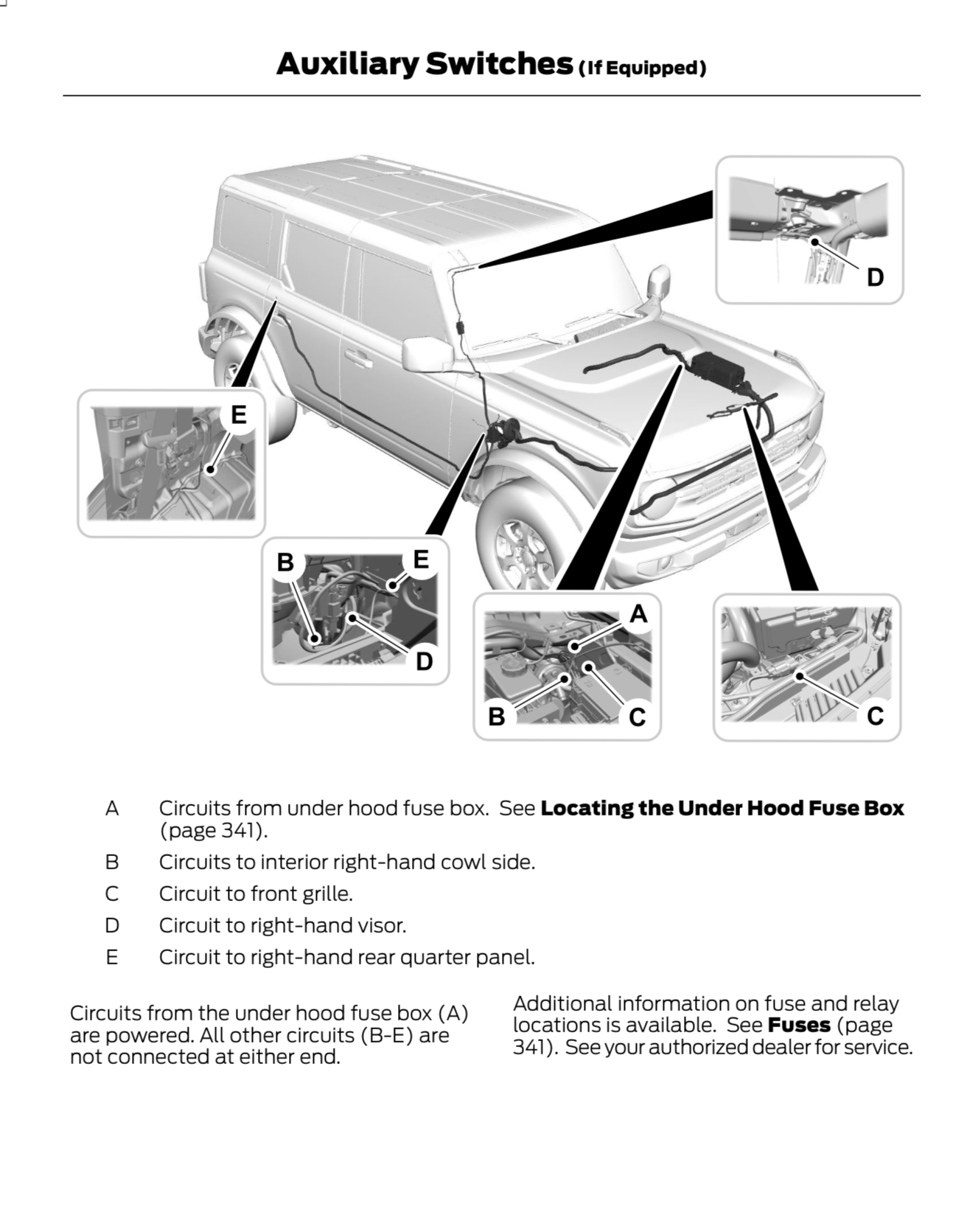

Today at 12:47 am

Riding OB1, 23 4- door Outer Banks, SAS, MOD, MIC, Lux, Ordered 10/20/22, delivered 1/13/23

hotlizrd, UserError

Today at 2:21 am

That's great - thank you.

Today at 3:26 pm

I believe beginning in 2024 Ford quit putting this info in the owners manual, and instead published an installation guide..

I think this link will give you a 24 guide

https://www.bronco6g.com/forum/attachments/2024-ford-bronco-equipment-installation-guide-pdf.613940/

Riding OB1, 23 4- door Outer Banks, SAS, MOD, MIC, Lux, Ordered 10/20/22, delivered 1/13/23

hotlizrd, UserError

Today at 3:51 pm

Bluestreak57
I believe beginning in 2024 Ford quit putting this info in the owners manual, and instead published an installation guide..

I think this link will give you a 24 guide

https://www.bronco6g.com/forum/attachments/2024-ford-bronco-equipment-installation-guide-pdf.613940/

Do you have a link for the 2025 Bronco Sport document? Please/thanks.

Today at 5:43 pm

dwrufus53
Do you have a link for the 2025 Bronco Sport document? Please/thanks.

I don’t, but if you go to Ford.com and under support you should be able to find it… you might have to provide a VIN

Riding OB1, 23 4- door Outer Banks, SAS, MOD, MIC, Lux, Ordered 10/20/22, delivered 1/13/23

TK1215

Today at 7:41 pm

Thanks Bluestreak57, I can now install some aftermarket lights.

Bluestreak57

Today at 8:07 pm

Thank you so much!! Just bought 4 KC Lights , now it will be easy to wire up!!!
